贴装全息透明屏采用高透光材质与超薄模组设计，轻巧服帖于玻璃或透明基面，保持空间通透感的同时实现高清显示。内置高性能驱动芯片，确保画面亮丽细腻且色彩还原度高。安装方式灵活，可大幅减少结构改造成本，适合橱窗、展厅、博物馆等需要无框化、隐形化显示的高端场景。
高透显像，空间通透
超薄模组，轻盈贴合
柔性安装，适配多面
高效驱动，画质稳定
节省结构，施工便捷

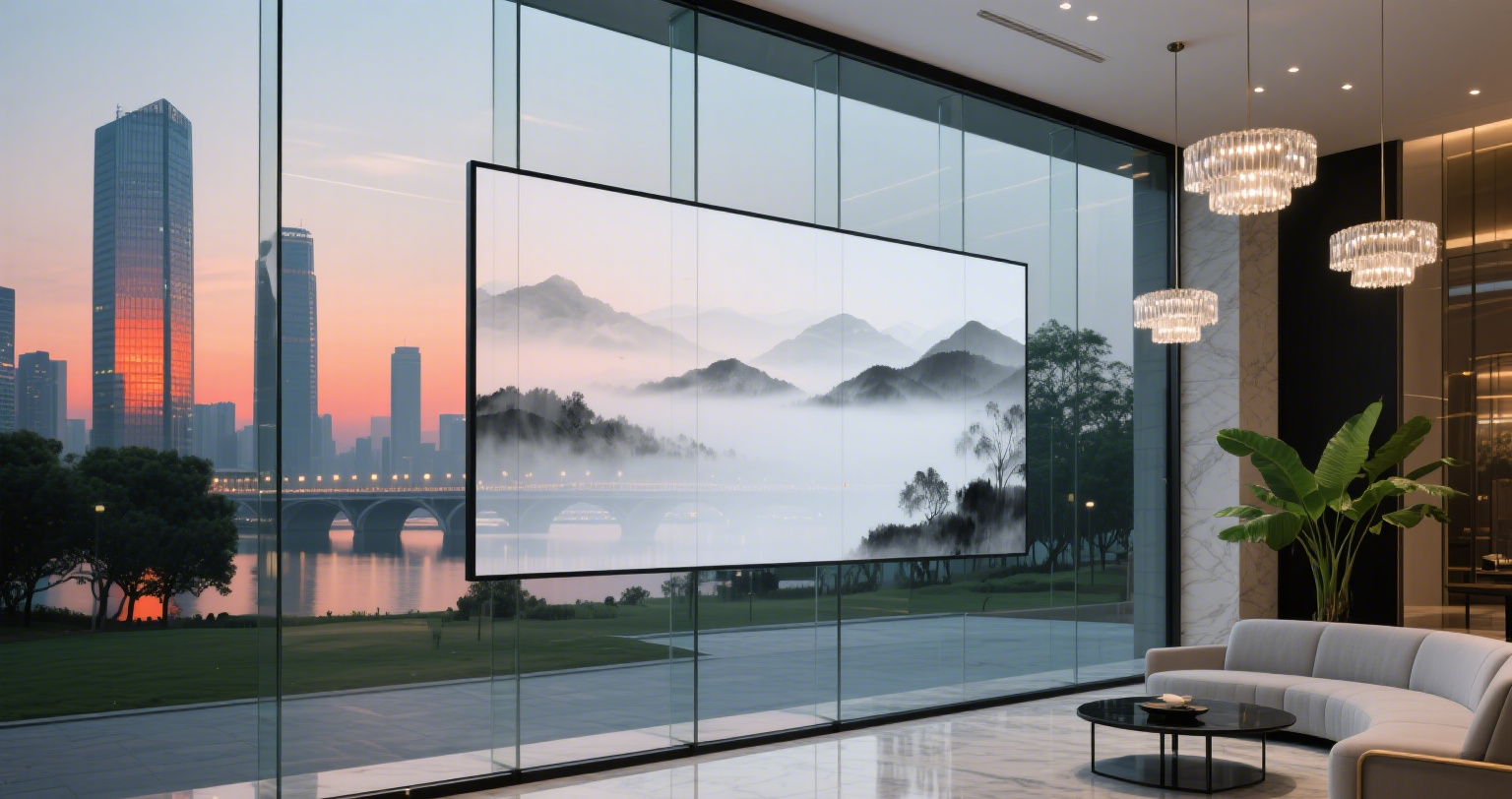

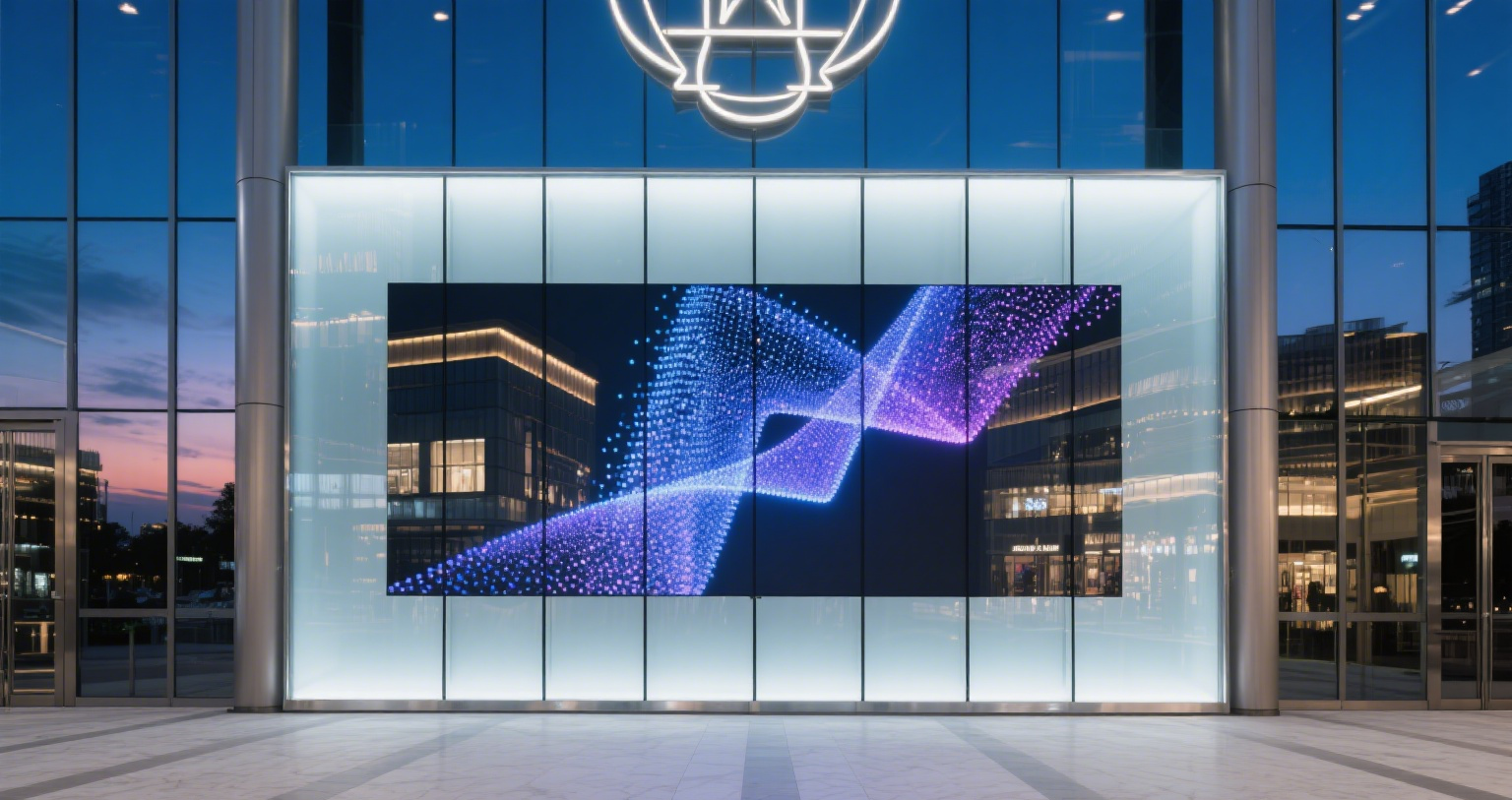

适用于商业橱窗、展厅展示、博物馆陈列、科技展览、玻璃幕墙等贴装场景，兼顾空间美感与高清显示效果。
| H03G | ||||
| Product Model | H03G-P2.6 | H03G-P3.91 | H03G-P6.25 | |
| Pixel Pitch | 2.6mm | 3.91mm | 6.25mm | |
| LEDType | SMD1415 | SMD1415 | SMD1921 | |
| Cabinet Dimensions (Wx Hx D) | Hx-100 | / | 500x1000x55.3mm | / |
| Hx-120 | / | 500x1200x55.3mm | / | |
| Hx-150 | 500x1500x55.3mm | |||
| Cabinet Resolution (W x H) | Hx-100 | 128 X256 pixels | ||
| Hx-120 | 128 x308 pixels | |||
| Hx-150 | 192 x 576pixels | 128 x384 pixels | 80 x240 pixels | |
| Module Dimensions (WxH) | Hx-100 | 250x1000mm | ||
| Hx-120 | 250x1200mm | |||
| Hx-150 | 250x1500mm | |||
| Module Resolution (W x H) | Hx-100 | 64x256pixels | ||
| Hx-120 | 64x308pixels | |||
| Hx-150 | 96x576pixels | 64x384pixels | 40x240pixels | |
| Physical Transparency | 20% | 35% | 32% | |
| Brightness | ≥3500cd/ m² | ≥3200cd/ m² | ||
| Refresh Rate | 3840 ~7680HZ | |||
| Color Temperature | 3000-10000K | |||
| Ingress Protection | IP40 | |||
| Max.Power Consumption | 350 W/ m² | |||
| Avg.Power Consumption | 140 W/ m² | |||
| Input Voltage | AC90 ~240V | |||
| Operating Environment | -20 ~50℃，0 ~80℃ | |||
| Cabinet Material | Aluminum | |||
| Installation Method | Hanging Installation, Surface Mount, Curved Splicing, Vertical Installation | |||
| Control Card System | Novastar | |||
| Warranty Period | 12 Month | |||
